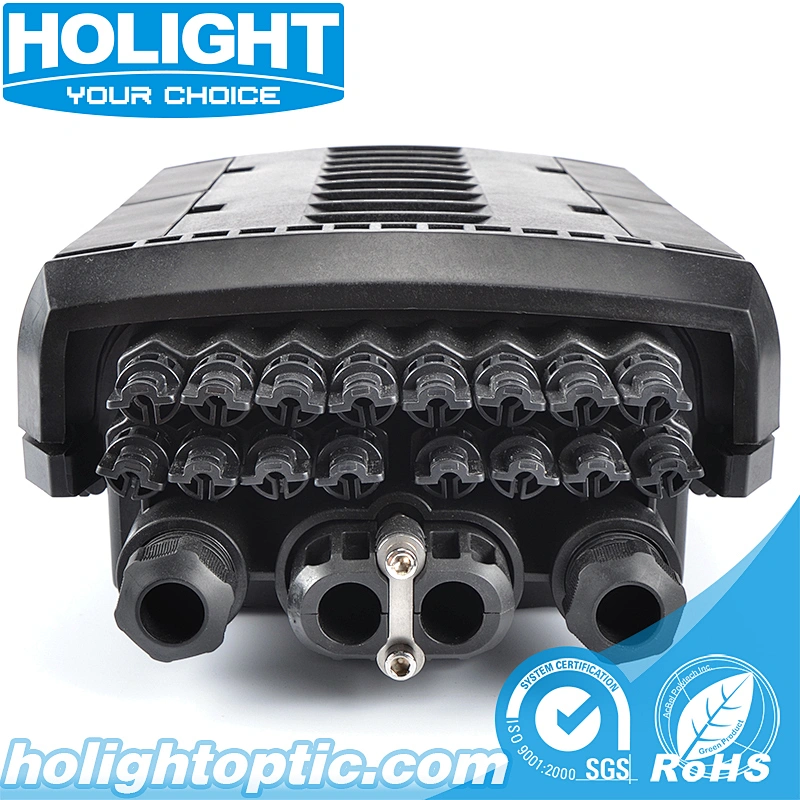

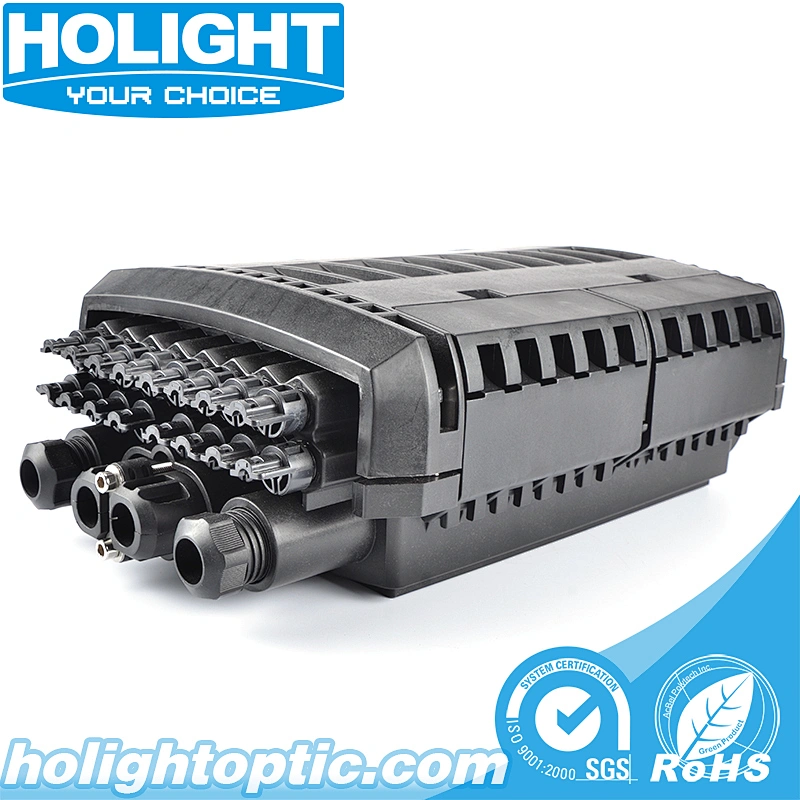

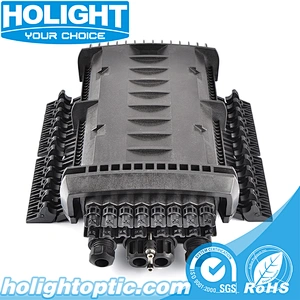

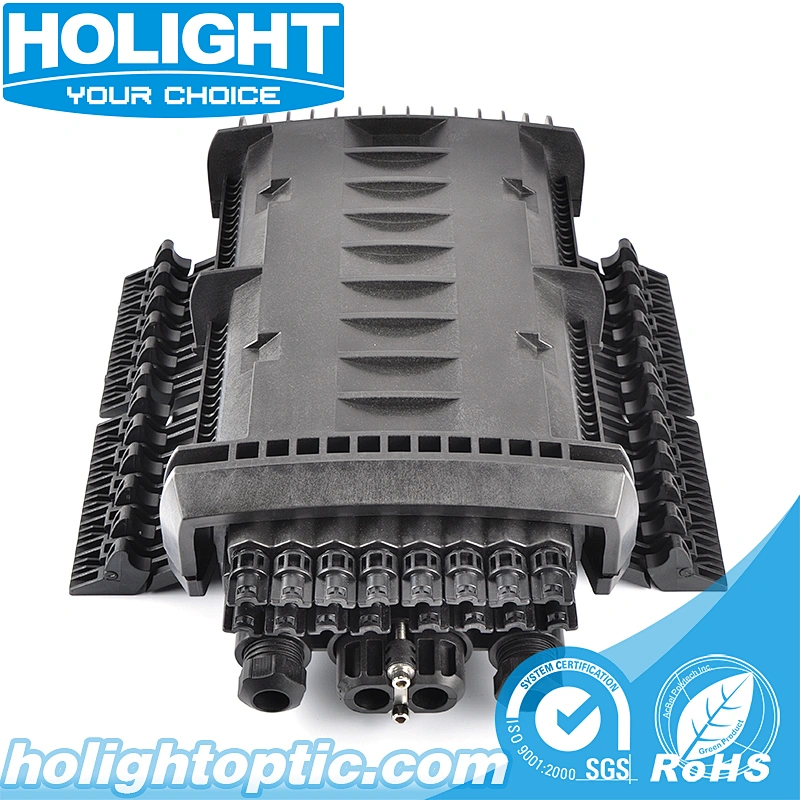

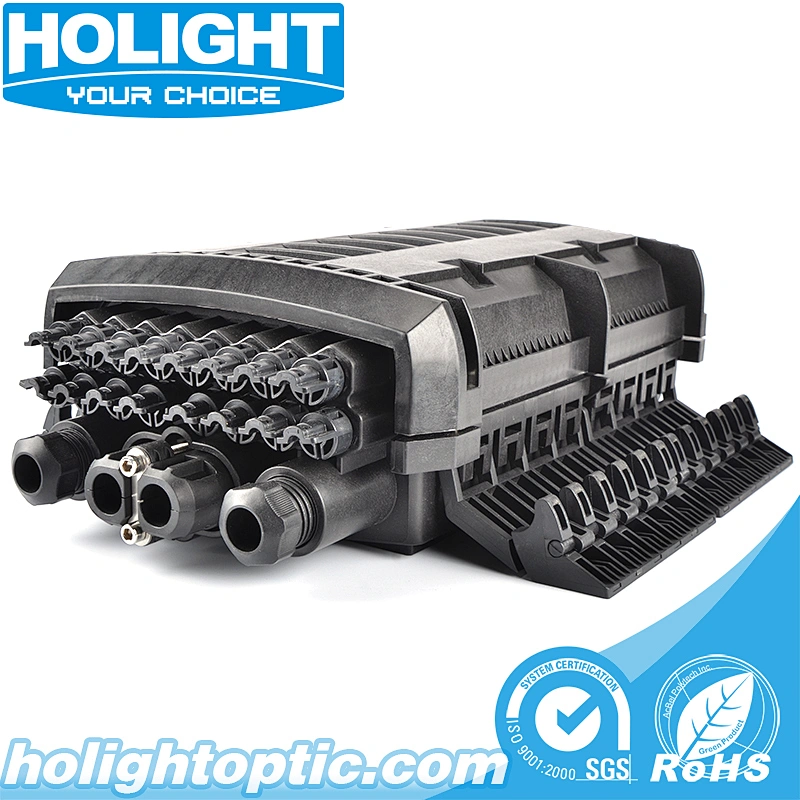

16 Ports Outdoor Fiber Optic Splice Closure for FTTx

FEATURES

· Water-proof design with IP-68 Protection level.
· Integrated with flap-up splice cassette and adaptor holder.
· Impact test: IK10, Pull Force: 100N,Full rugged design
· All stainless metal plate and anti-rusting bolts,nuts.
· Fiber bend radius control more than 40mm.
· Suitable for the fusion splice or mechanical splice.
· 2 pcs of 1*8 Splitter can be installed as an option.
· Mechanical sealing structure and mid-span cable entry.
· 16 ports cable entrance for drop cable.
· 24 adaptors for drop cable patching

APPLICATIONS

· Wall mounting and pole mounting installtion
· FTTH pre-installation and filed installation
· 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and
outdoor figure 8 FTTH self-supporting drop cable
* Protection against fungi meet ISO846 standard ； The degree of
protection provided by the box against harmful mechanical impacts,
thus safeguarding the materials or equipment inside, the degree of
protection is ≥ IK 06
