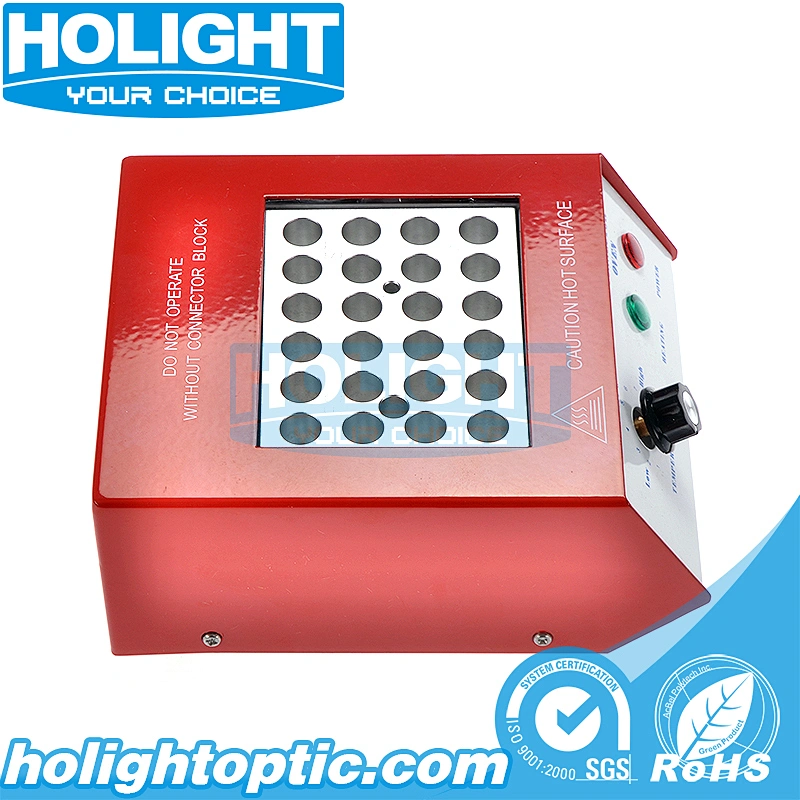

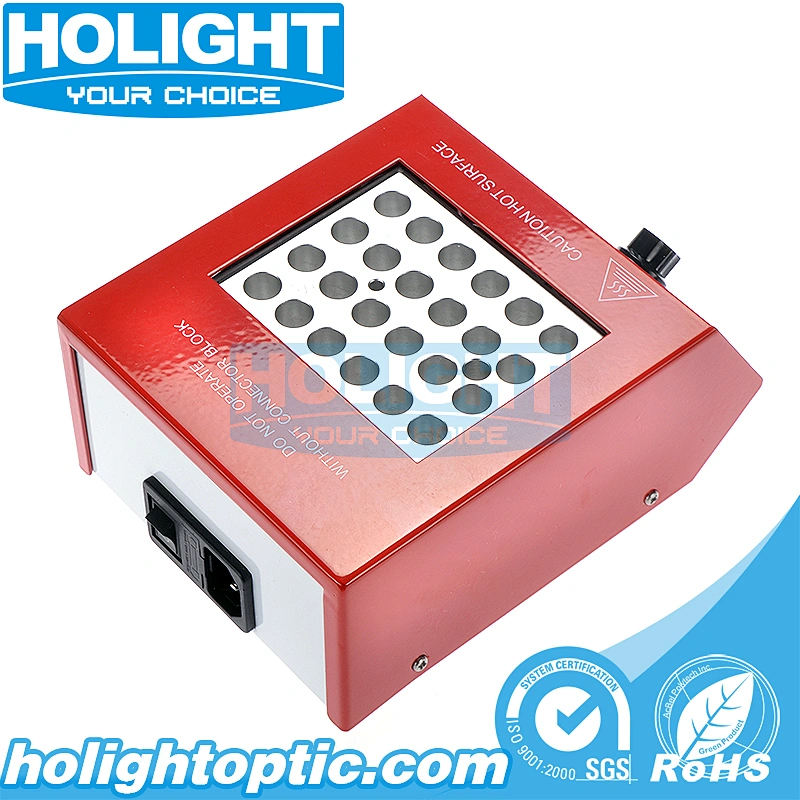

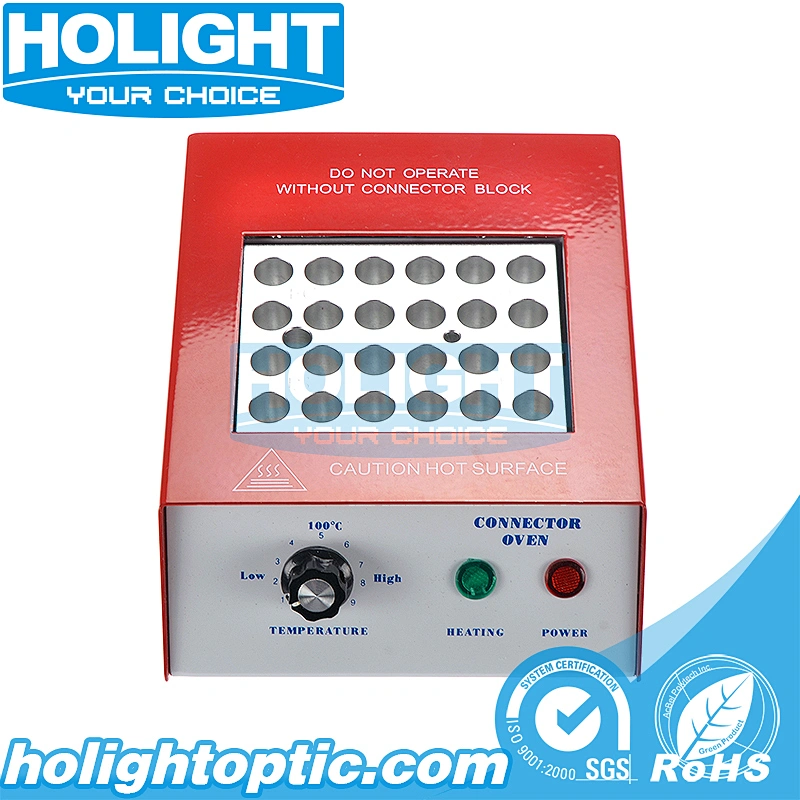

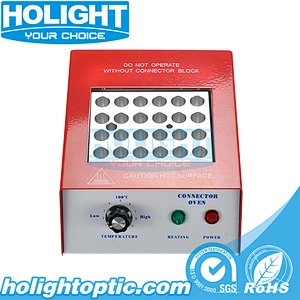

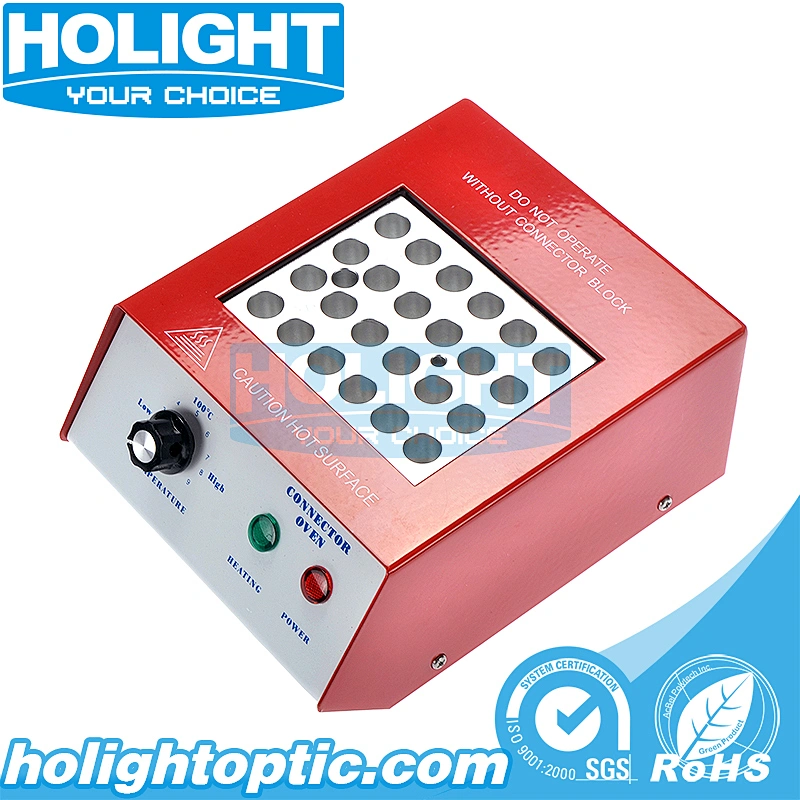

110V 24 Ports Connector Heat Cure Oven With Thermometer (FC/ST/D4/SMA/SC)

• This connector heat cure oven features thermostat control dial, heat"on"light indicator and power"on"light indicator. The temperature control allows proper cure of several types of epoxy.

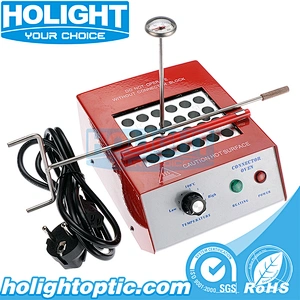

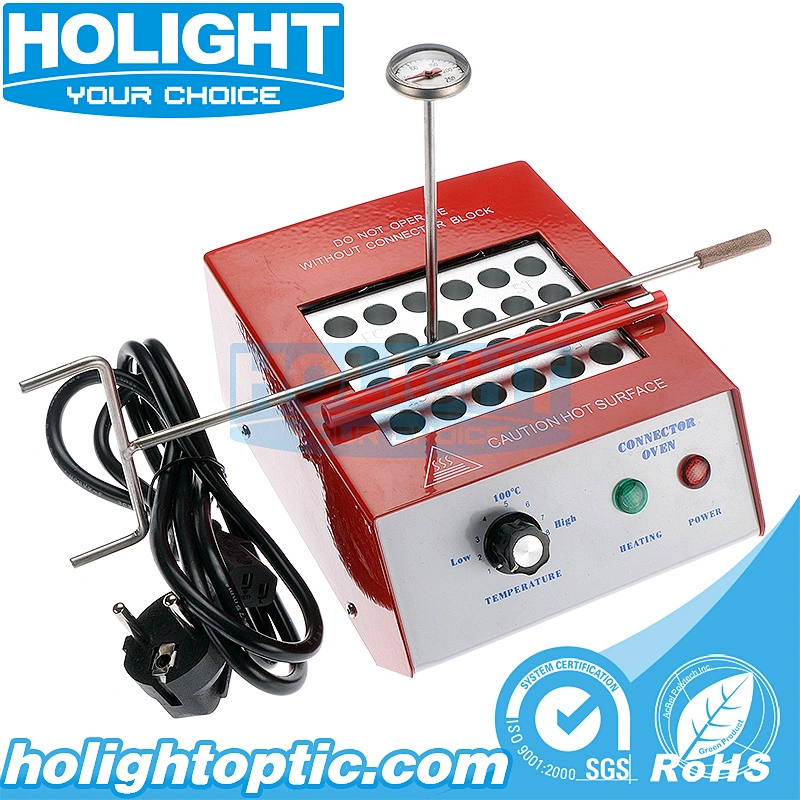

• The oven comes with a standard heat cure block and a thermometer. The standard heat cure block can hold up to 24 ST, FC, SC, D4, or SMA connectors. The block is designed to provide even heat distribution and minimize connector heat loss. The temperature control allows proper cure of several types of epoxy.

Apply To:

1. Used to heat and weld Various fiber optical cable couplers, including FC, SC, ST, LC, MU and so on, especially suitable for processing MT and MPO fiber optical connectors;

2. it can simultaneously heat & weld 24 fiber optical couplers at the most; Even heating with low wear & tear of cable coupler;

3. Precise temperature control system can adjust the temperature within the 40-150 °C range, the temperature-control precision can reach ±1°C ;

4. Process equipment are replaceable, reducing the ancillary time;

5. Operation simple and reliable;

6. Process equipment with different number of wires & specifications and grill plates can be customized based on customer requirements.
